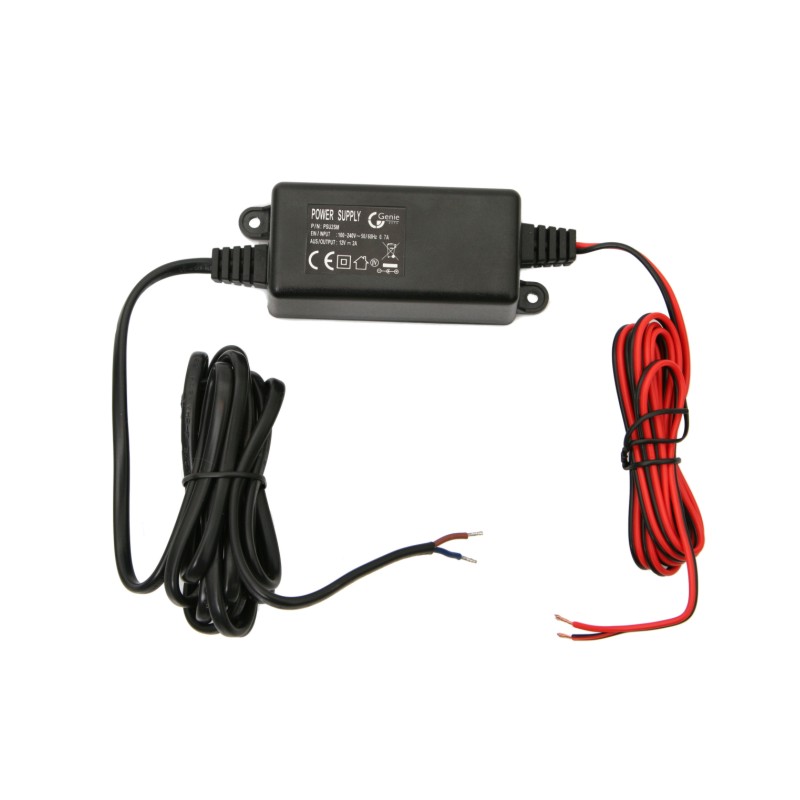

ADS DC 12V 2A Power Supply Unit

SKU: DG-PSU Category:


ADS 12V 2A DC Power Supply Unit.

Can be used to power any device needing a 12V power supply.

  • Nominal Input Voltage: AC 100V~240V
  • Output Voltage: DC 12V
  • Maximum Load Current: 2.0A
  • Frequency Rated: 50/60Hz
  • Load Regulation: 5%
  • Insulation Resistance: 100M Ohm @ DC 500V
  • Safety Approvals: CE / EN60065 / EN60950
  • Dimensions: (W x H x D) 37mm x 30mm x 81mm
  • Weight: 300g
  • Mean Time Between Failure: 40000 Hours
  • Operating Conditions Temperature: 0C ~ +40C Humidity: 10% ~ 90% RH

Additional information

Weight 2.000 kg
