Codelocks NANO90 KitLock Furniture Lock

SKU: DS-CL90 Category:

Out of stock


Free mainland UK delivery

On orders over £50 (charges apply to oversized items) - find out more here


NANO90 KitLock furniture lock has been designed with small spaces in mind. Ideal for lockers or furniture drawers the NANO90 can be surface mounted or fitted flush providing keyless access in a small attractive package. The lock has four code levels available (master, sub-master, user & technician).

Powered by a single coin cell battery held in a tamper resistant compartment. This should last up to around 100,000 operations. A red LED will flash on low battery level. However, if the power fails completely – a standard PP3 battery placed on the external points between the LEDs to open the lock.

The NANO90 offers two functions:

Private mode: This is used where a single person will repeatedly use the same code on a desk drawer locker or cupboard. Good for employees that use the same locker/drawer every day.

Public mode: A code is entered into the NANO90 which once used gives access a single time once the lock is closed again the code is erased ready for another code to be set. Good for hot desking in offices or lockers in a sport club.

A drilling template can be downloaded and printed from the ‘Brochures’ tab on this page. Important! When printing templates, check your print settings to make sure that the template is printed at 100% of the actual size. Once printed, check the measurements on the template with a ruler before drilling your door or cabinet.


  • 12 button keypad
  • 8 digit Master and Sub-Master Code
  • 4 digit User Code
  • 6 digit Technician Code

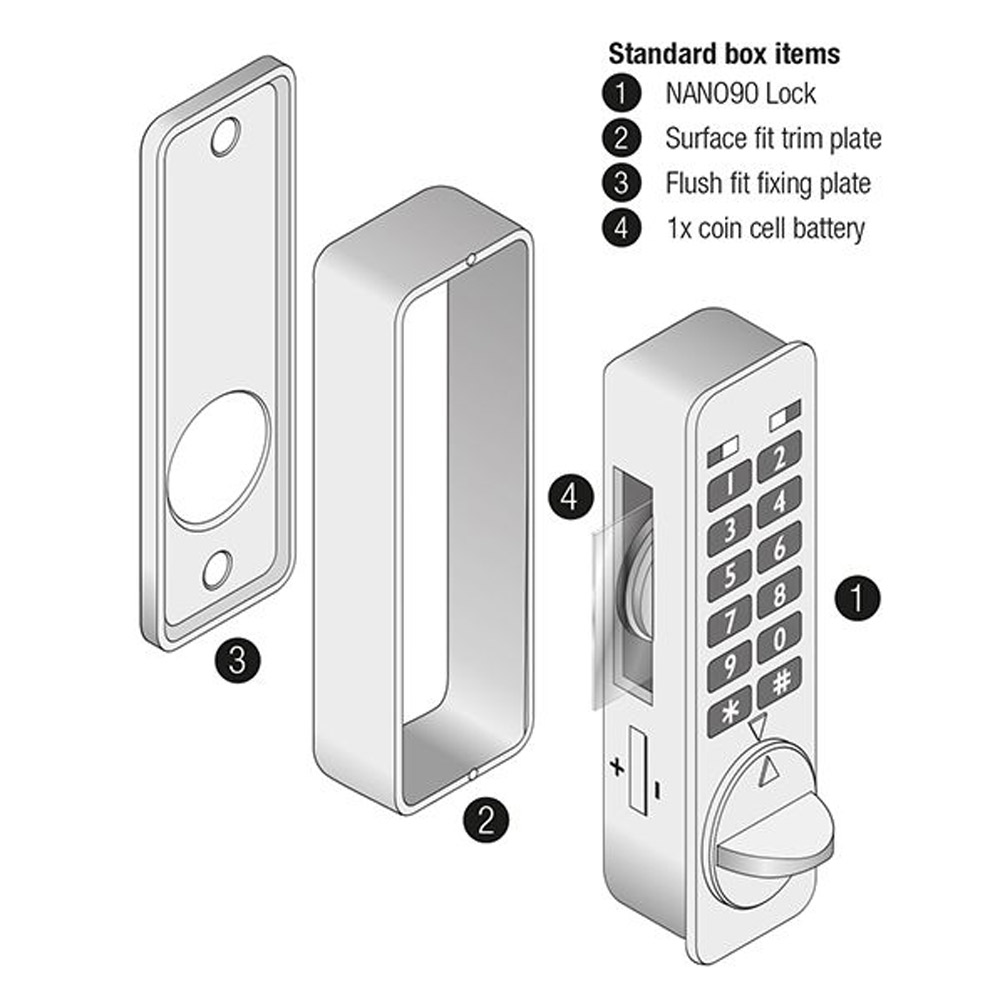

  • Surface mounted or flush fitted
  • Retro fits standard cam locks
  • Up to 100,000 operations from a single 3V button cell battery (included)
  • Suitable for doors up to 400 x 400mm
  • PP3 battery override so lock can be opened to replace cell battery
  • Auto unlock feature

Additional information

Weight 2 kg



CR2450N lithium 3V button cell battery
