ADS Locca Replacement Kit

Array
SKU: LCA-REP-I Category:

It is not possible to order this product through our website right now. Please get in touch for more information about how to order.

Find out more

Out of stock

£247.70

Free mainland UK delivery

On orders over £50 (charges apply to oversized items) - find out more here

Description

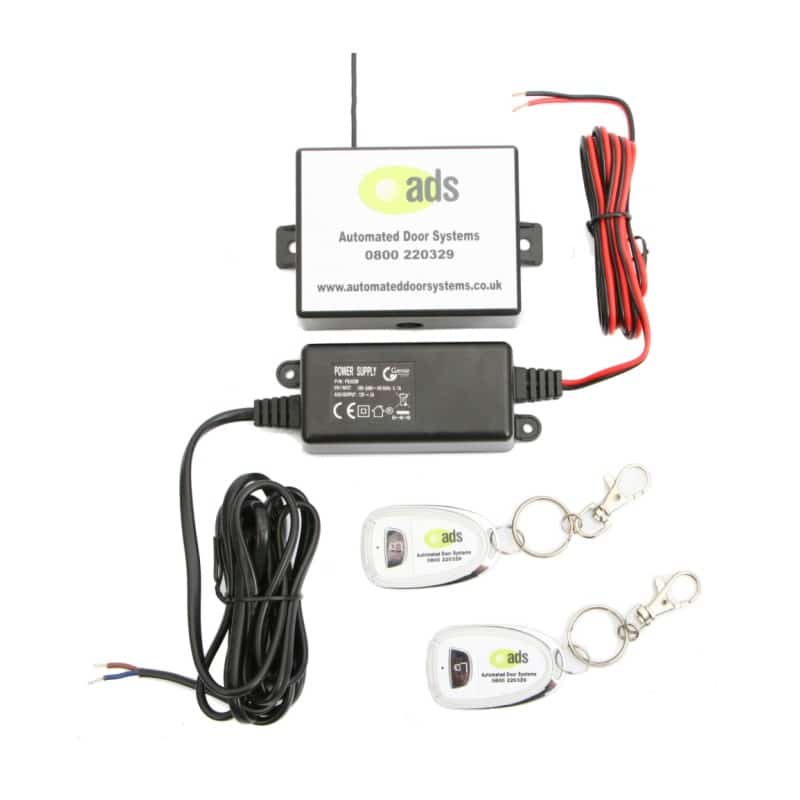

This Kit has been specifically put together to replace the discontinued Locca Access and Locca Multi access control key fob systems.

It comprises of:

1 ADS Wireless Receiver

1 ADS Power Supply

2 ADS Radio Key Fobs

Additional information

Weight 2.000 kg
Brand

ADS

Reviews

There are no reviews yet.

Be the first to review “ADS Locca Replacement Kit”

Your email address will not be published. Required fields are marked *

Brochures

FAQs

Receiver Information
  • Operating Voltage: 9 – 24V AC / DC (Regulated)
  • Current Consumption: 75mA
  • Operating Frequency: 433.92Mhz
  • RF Signal Type: Keeloq AM ASK Code Hopping
  • Coding Combinations: 4.2 Billion
  • Storage Capacity: 255 Devices
  • Relay Outputs: 4 (Voltage Free)
  • Relay Timing: 1-5-10-15 Seconds
  • Relay Operation: Timed (Pulse) / Latched (Selectable)
  • Relay Rating: 1 Amp
Key Fob Information
  • Operating Frequency: 433.92Mhz
  • Transmission Range: Approximate / Min Range 50 Metres L.O.S
  • Operating Voltage: DC 12V
  • Current Consumption: 42mA Max
  • Battery Type: 27A (12V Alkaline Cell)
  • RF Signal Type: Keeloq AM ASK Code Hopping
  • Proximity Tag: NO
  • Transmission Channels: 1
  • Controller / Receiver Required: DG-REC-I / DG-REC-E
  • Material: ABS & Metal
  • Finish: Clear White & Chrome
PSU Information
  • Nominal Input Voltage: AC 100V~240V
  • Output Voltage DC 12V: DC 12V
  • Maximum Load Current: 2.0A
  • Frequency Rated: 50/60Hz
  • Load Regulation: 0.05
  • Insulation Resistance: 100M Ohm @ DC 500V
  • Safety Approvals: CE / EN60065 / EN60950
  • Dimensions: (W x H x D) 37 x 30 x 81 mm
  • Weight: 300g
  • Mean Time Between Failure: 40,000 Hours
  • Operating Conditions Temperature: 0C ~ +40C
  • Humidity: 10% ~ 90% RH
