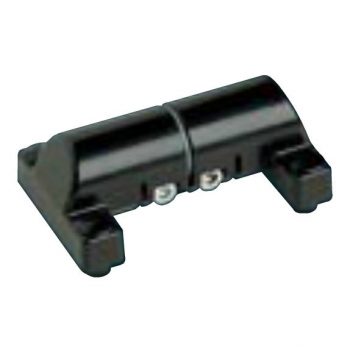

Hautau Tornado 2 Pivot Hinges are state-of-the-art hinges which sit flush with the sill bar. They operate via two limited pivot points allowing the window to be turned through a 180° angle.
The sash release & brake adjusting screws are buried in the sash, allowing the hinge’s front & side surfaces to be completely smooth and free of any protruding screw heads.
Tornado 2 Pivot Hinges Features
- With drilling cam
- Supplied in pairs
- Silver or white finish
- Compatible with straight timber windows
- Suitable for sash weights up to 175kg
- Rebate 15/4/15
- Timber thickness 68mm or more
- Rotate through 180°
Full locking gear to go around the sash such as locking mechanisms and frame keeps also available by special request
