Simonswerk SIKU 3D Flag Hinge Jig Type 4

Array
SKU: 1483 Category:

Description

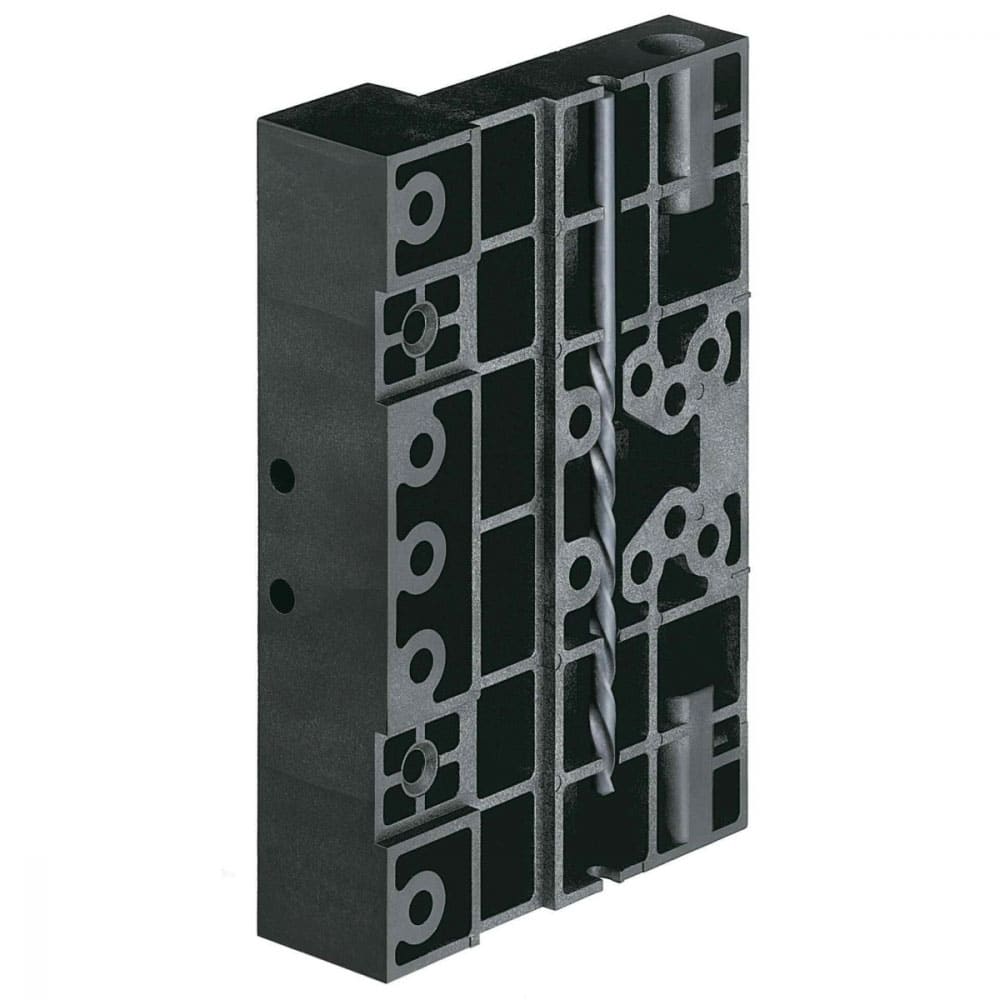

Simonswerk SIKU 3D hinge jig, type 4 design.

This drilling jig is a specific tool to accurately fit Simonswerk flag hinges.

Features

  • Suitable for K4045, K4145, K4245, K4345 hinges
  • Compatible with left &r right hand hinges
  • Professional fitting tool

Hinge Jig Includes

  • 1 x drilling jig
  • 1 x drill bit Ø5mm
  • 1 x Allen key 4mm (blind plugs)
  • 1 x fitting instruction

Additional information

Weight 2 kg
Brand

Simonswerk

Compatibility

K4045, K4145, K4245, K4345

MPN

5 250644 0 00001

Instructions

Fitting instructions

1. Place door in the frame and use spacer blocs to create clearance as per profile manufacturer’s instructions.

2. Mark hinge position, attach drilling jig and clamp in place.

3. Drill holes with a Ø5mm drill bit.
