Siegenia Titan AF (Face-Fixed) Tilt & Turn Gearing



  • Clear

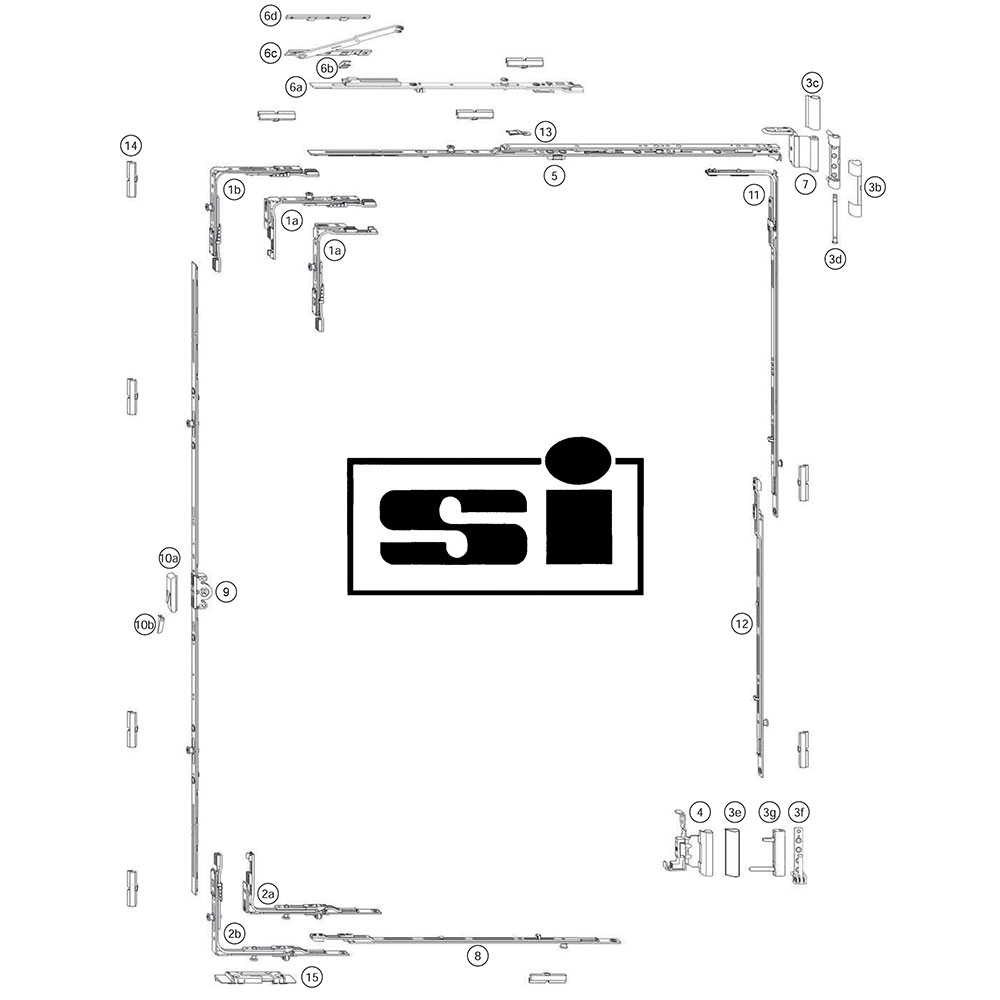

Full kit of Siegenia Titan AF face fixed tilt & turn gearing suitable for uPVC, aluminium, timber-aluminium and timber profile systems. Includes all parts required to fully gear one window. There is also a concealed version of the Titan AF tilt and turn system.

It is quick and easy to assemble the TITAN AF thanks to the innovative click-on coupling feature, which only requires 1 screw per coupling point.

When ordering, please select the appropriate window width, height and handing. The handing is determined by whichever side the hinges are on when viewed from inside. There are optimised screw guide claws, precision coupling teeth, and joint chamfers so that components are connected securely in a straightforward way.

Almost all opening types such as rectangular, arched head, rounded head, and angled head windows can be installed as single or double-sash windows.

The components are supplied in a silver finish with white plastic cover caps for the hinges (brown caps are available by special request).

Components also available separately if required, please contact us.

Please note the window handle is NOT included in the set.


  • Espagnolette backset: 7mm or 15mm
  • Faceplate width: 16mm Eurogroove for uPVC or aluminium
  • 24mm rebate width for timber or timber-aluminium
  • Sash rebate width: 230 – 1650mm (maximum)
  • Sash rebate height: 260 – 2360mm (maximum)
  • Suitable for max sash weight 130kg

Additional information

Weight 2.000 kg





Left Hand, Right Hand

Overall Window Width

Between 1051-1250mm, Between 1251-1450mm, Between 1451-1560mm, Between 230-450mm, Between 451-680mm, Between 681-850mm, Between 851-1050mm

Overall Window Height

Between 1201-1600mm, Between 1601-2000mm, Between 2001-2360mm, Between 260-600mm, Between 601-800mm, Between 801-1200mm


Aluminium, UPVC


Gearing, Kits & Sets
