Siegenia Titan AF (Concealed) Tilt & Turn Gearing

SKU: TAFC Category:


  • Clear

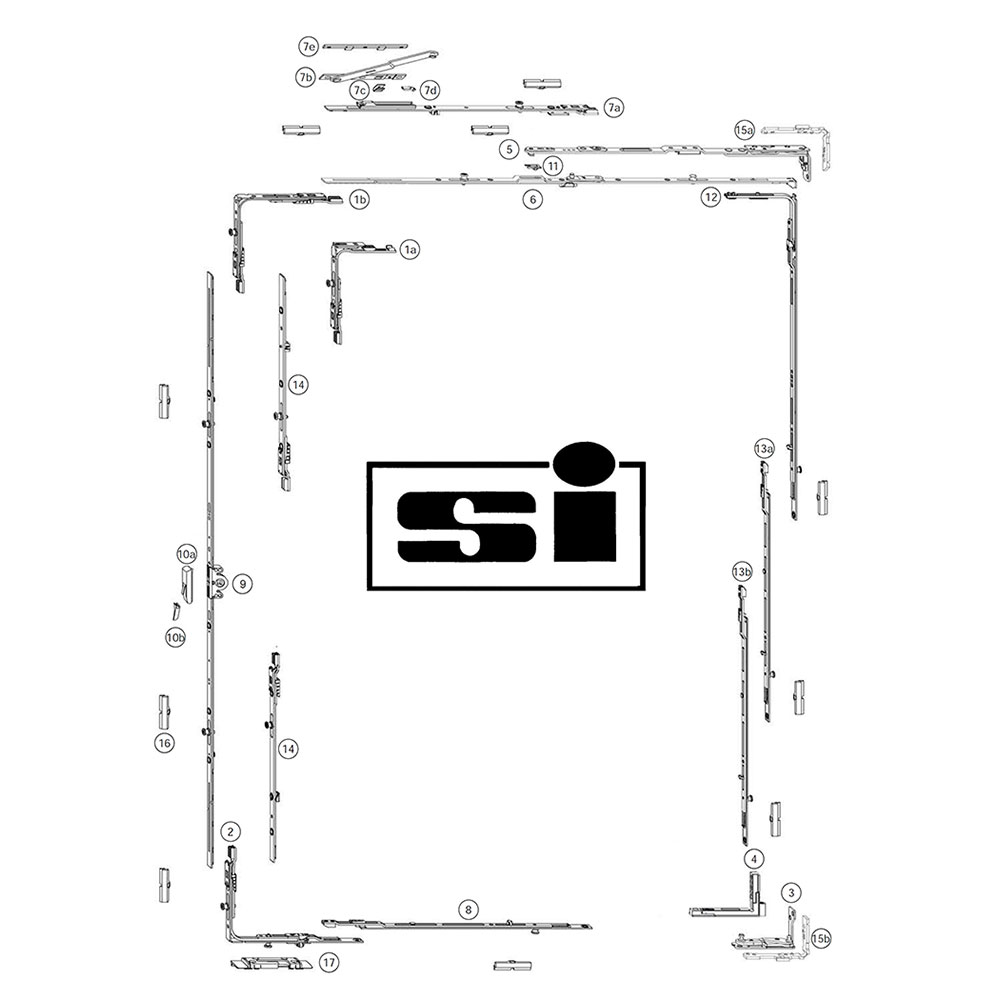

Full kit of Siegenia Titan AF Concealed Tilt & Turn gearing suitable for uPVC, aluminium, timber-aluminium and timber profile systems. Includes all parts required to fully gear one window. This Siegenia tilt and turn system is the concealed variation of the Titan AF face fixed version.

It is quick and easy to assemble the TITAN AF thanks to the innovative click on coupling feature, which only requires 1 screw per coupling point.

When ordering, please select the appropriate window width, height and handing. The handing is determined by whichever side the hinges are on when viewed from inside. There are optimised screw guide claws, precision coupling teeth, and joint chamfers so that components are connected securely in a straightforward way.

Almost all opening types such as rectangular, arched head, rounded head, and angled head windows can be installed as single or double-sash windows.

The components are supplied in a silver finish with white plastic cover caps for the hinges (brown caps are available by special request).

Components also available separately if required – please contact us through the ‘Get in touch’ tab on this page.

Please note the window handle is NOT included in the set.


  • Espagnolette backset: 7mm or 15mm
  • Faceplate width: 16mm Eurogroove for uPVC or aluminium
  • 24mm rebate width for timber or timber-aluminium
  • Suitable for a maximum sash weight of 150kg
  • Sash width: 380 – 1650mm
  • Sash height: 460 – 3000mm

Additional information

Weight 2.000 kg





13mm Axis, 9mm Axis


Left Hand, Right Hand


Aluminium, UPVC


Gearing, Kits & Sets
