Fapim Loira+ 3-Leaf Hinge

SKU: N/A Category:


  • Clear

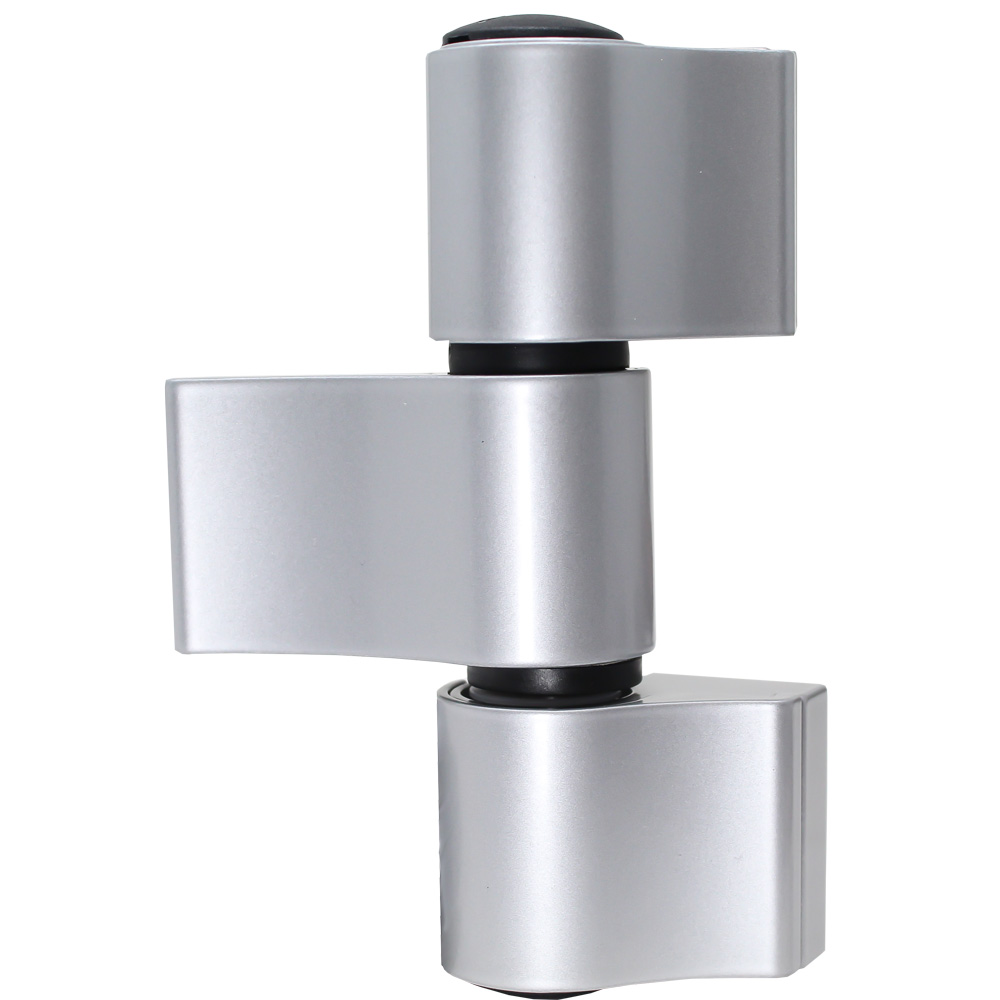

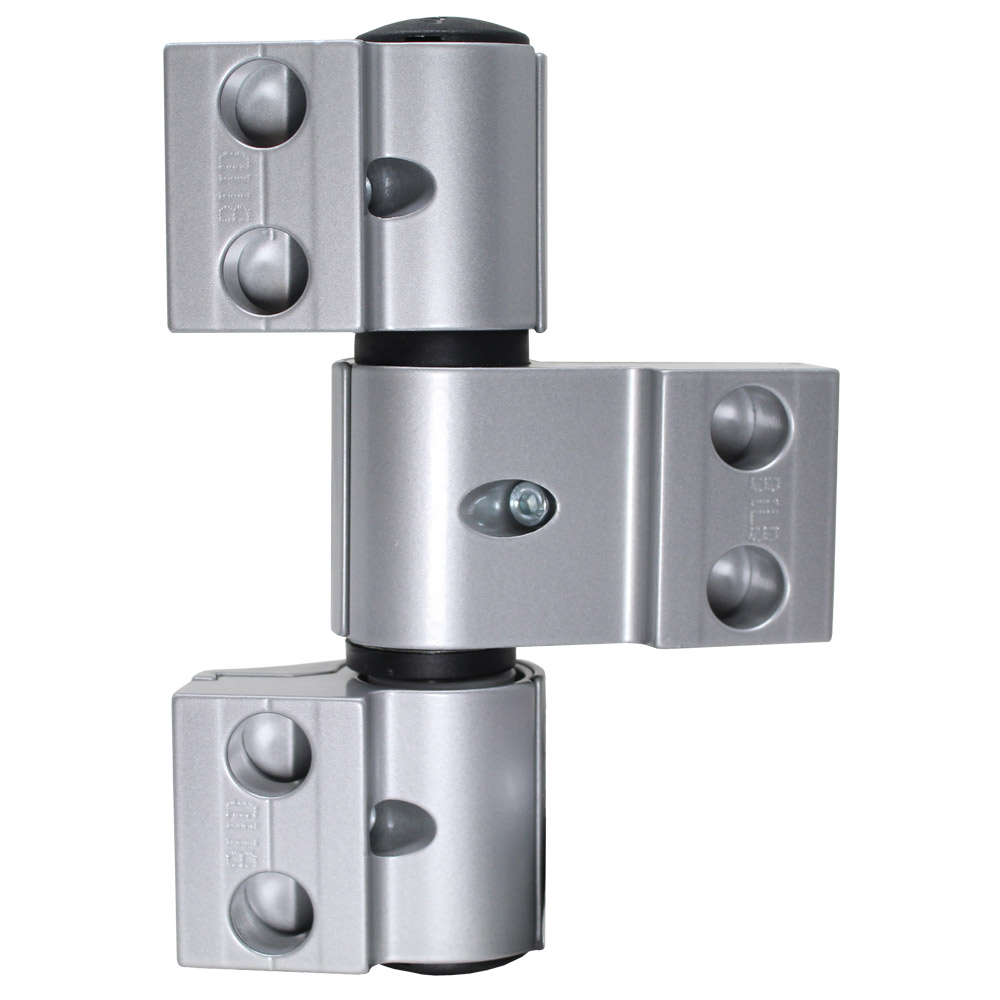

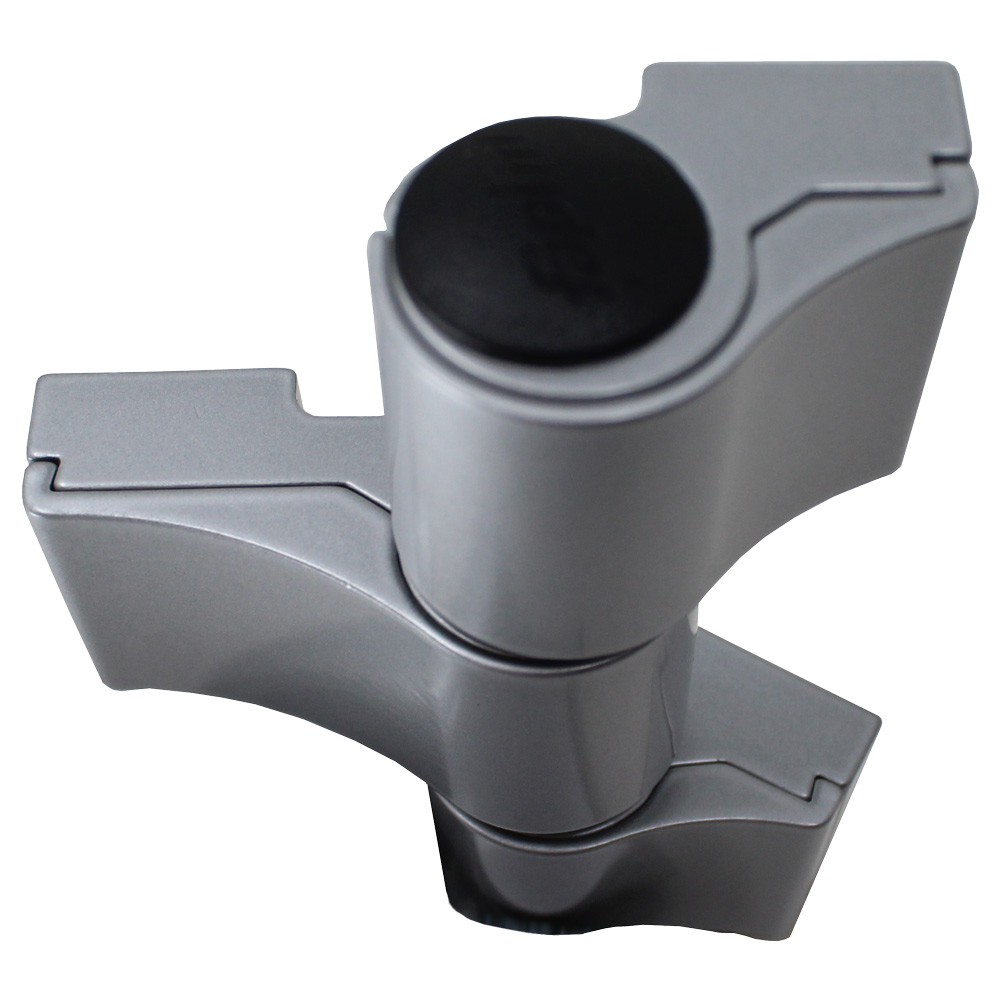

Fapim Loira+ 3-leaf aluminium hinge in an oxidised painted silver finish. 3D adjustable and can be adjusted when the door is fitted by a single operator.


  • Comes in a silver finish (other finished and sizes available by special request)
  • Door weight capacity 160kg
  • Manufactured from extruded aluminium
  • Certificated to CE EN 1935:02 and SKG anti-theft ENV 1627 standards
  • Full 3D adjustment
  • Can be adjusted when fitted to the door

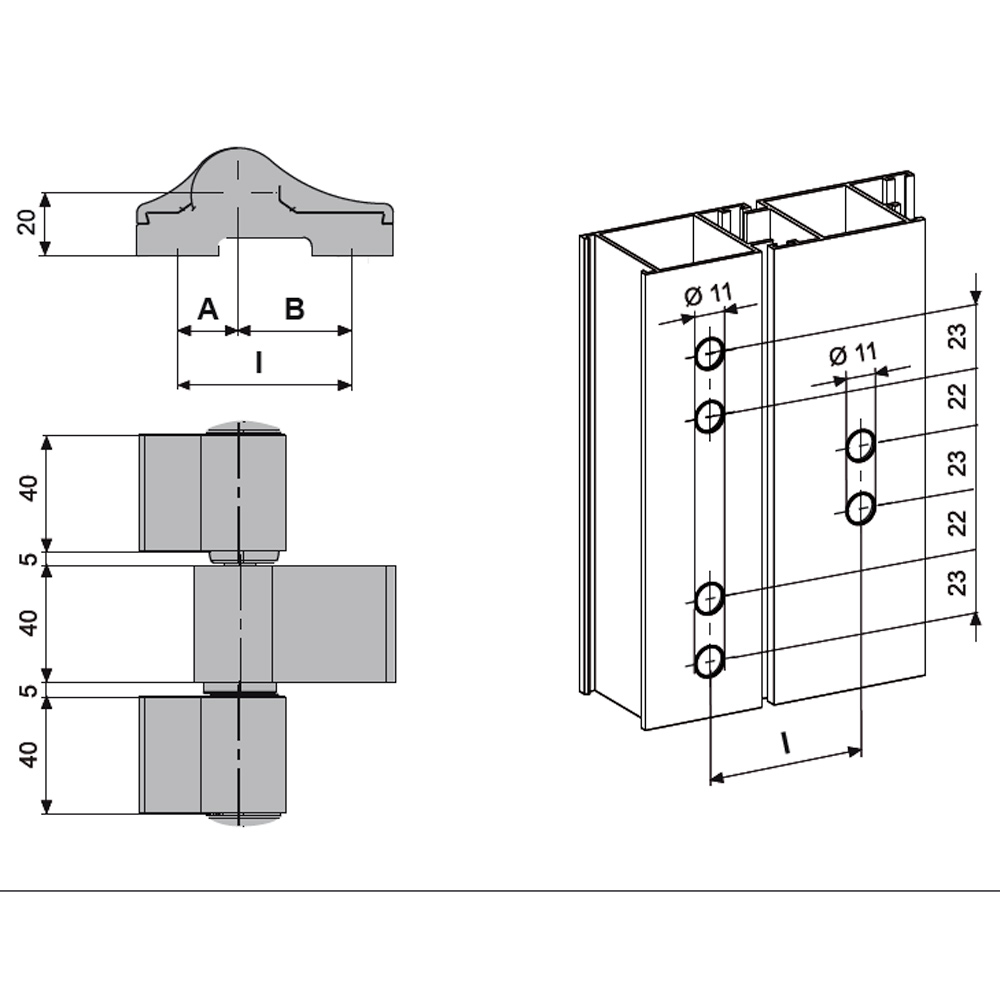

Sizes available:
FAP7003V: I=60 / A=20.5 / B=39.5mm
FAP7023V/S: I=79 / A=39.5 / B=39.5mm
FAP7043VS: I=86 / A=39.5/ B=46.5mm
FAP7053VS: I=93 / A=46.5 / B=46.5mm

Additional information

Weight 2 kg



60mm, 79mm, 86mm, 93mm


3D, 3-Part, Adjustable, Aluminium
