Winkhaus activPilot Select (Concealed) Gearing
Winkhaus activPilot Select (Concealed) Gearing

Winkhaus activPilot Select (Concealed) Gearing

pa_brand
SKU: ACPC Category:

£158.62 – £237.50

  • Clear
Trade discount available on this product

Sign in to view trade prices.

Free mainland UK delivery

On orders over £75 (charges apply to oversized items) - find out more here

Description

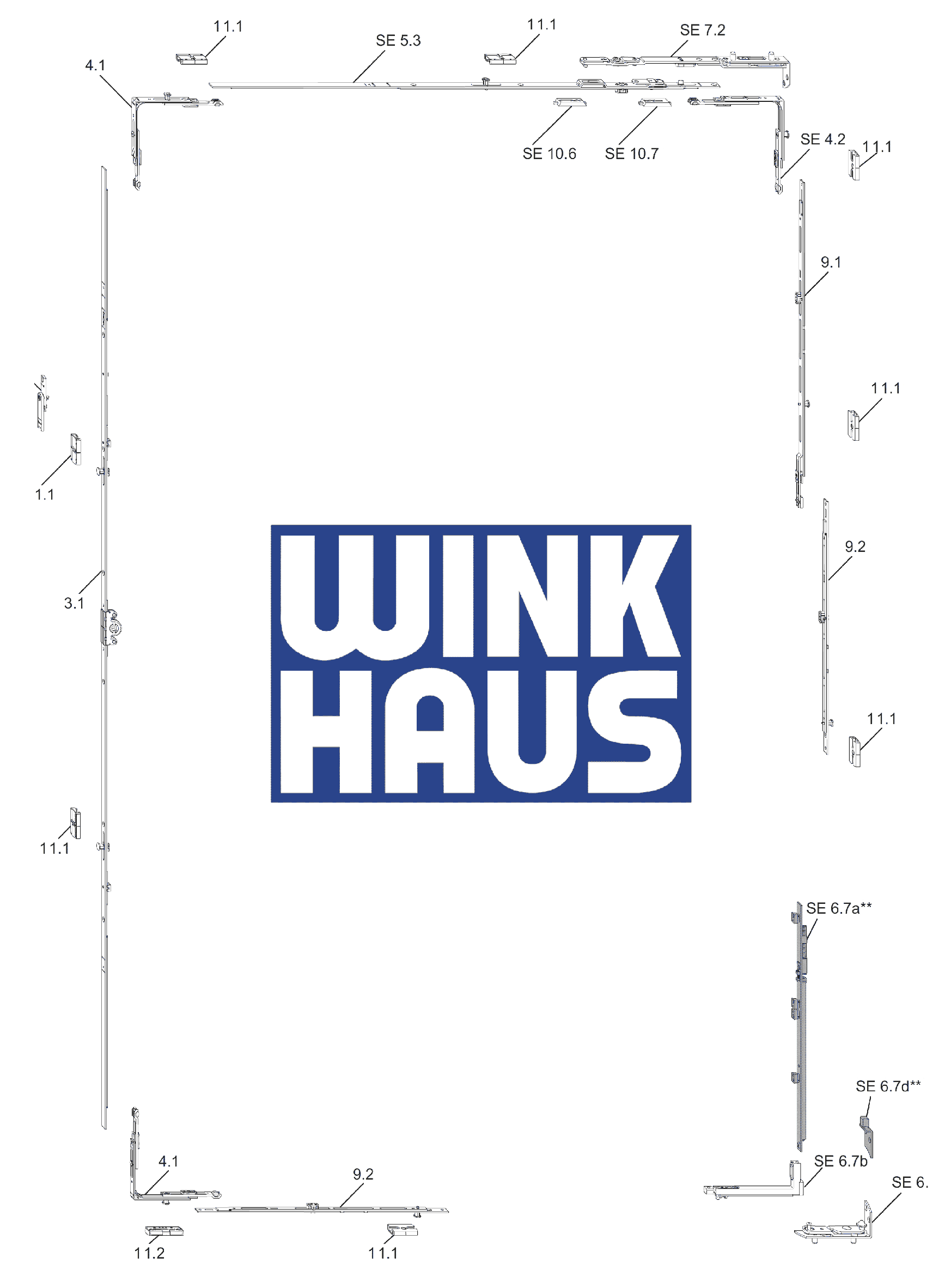

Full kit of Winkhaus activPilot Select concealed tilt & turn gearing. The set includes all parts required to fully gear one window. Concealed gearing means that no parts are visible when the window is closed.

When ordering, please select the appropriate window width & height. Also specify which hand you require (when viewed from inside, hinges that are on the left denote a left-hand system, and vice-versa).

Please note that the window handle is not included in the set.

Separate components are also available to purchase if required. Click the Get in touch tab to contact us for more details.

Features

  • Full set of parts to gear one window
  • Suitable for sash weights 30-150kg
  • Min sash width: 380mm / Max: 1725mm
  • Min sash height: 326mm / Max: 2300mm
  • Certified to DIN EN 13126-8 and BS7950

Additional information

Weight 2.000 kg
Brand

Winkhaus
Sash Width

380-550mm, 551-800mm, 801-1025mm, 1026-1250mm, 1251-1475mm, 1476-1725mm
Sash Height

326-750mm, 751-950mm, 951-1200mm, 1201-1400mm, 1401-1800mm, 1801-1950mm, 1951-2200mm, 2201-2300mm
Handing

Left Handed, Right Handed

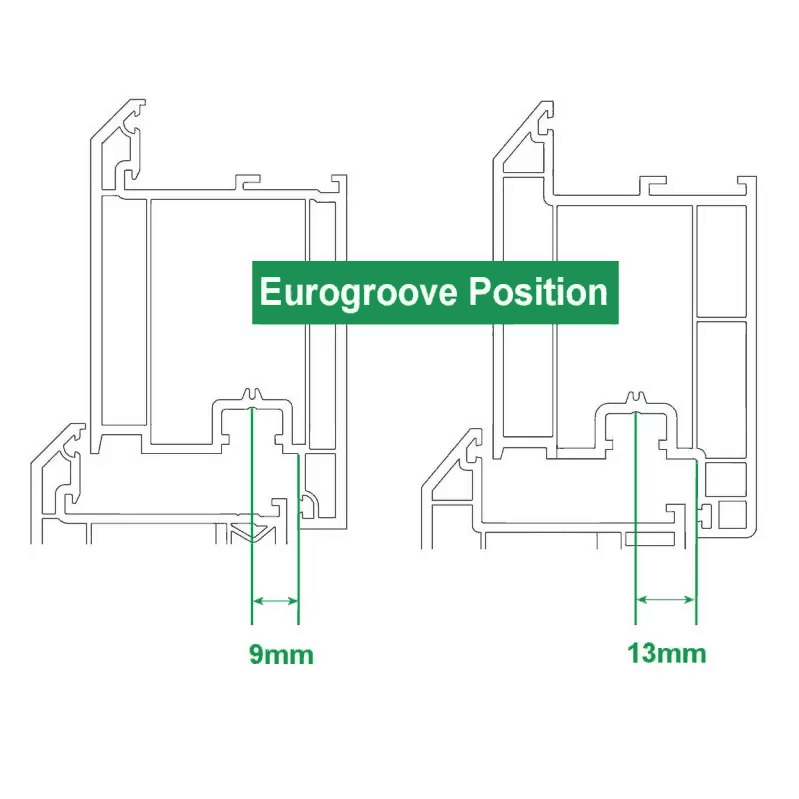

Eurogroove Position

9mm, 13mm
