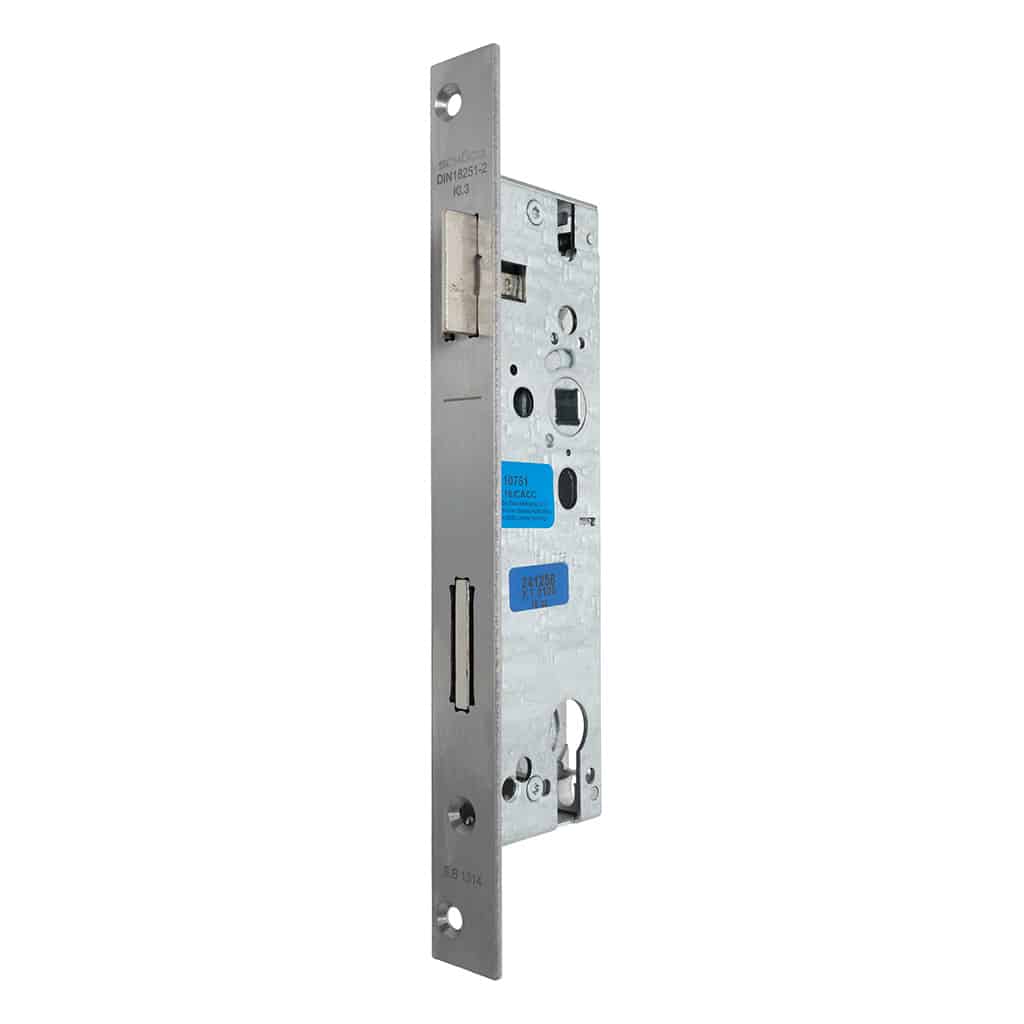

Schuco Mortice Door Lock

Description

This genuine Schüco Mortice Door Lock will ensure the integrity of your door system. Specifically designed for the Schüco ADS (Aluminium Door System) single and double-leaf rebated doors.

The lock has been tested and certified to DIN 18251-2 Class 3 standards for heavy-duty use in offices, schools, & public buildings. This lock is the standard for high-traffic commercial environments, providing the precise fit and long-term mechanical reliability that only authentic Schüco hardware can offer.

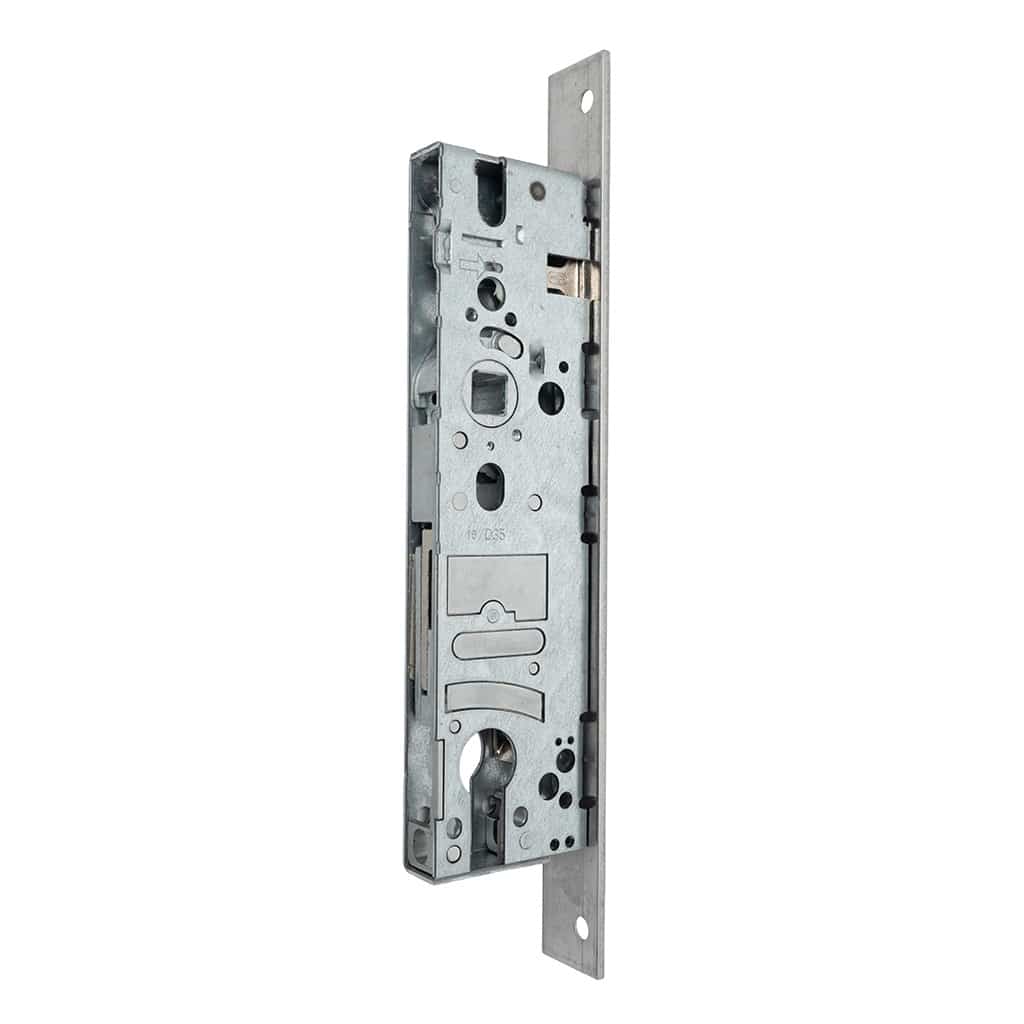

Please note that we show the left-handed version of the Schuco Latch & Deadbolt Door Lock for the technical drawing and gallery photos.

Features

• Schuco Latch & Deadbolt lock
• Left and right-hand options (not reversible)
• Offset front fixing screw holes
• Suitable for handles with a 10mm spindle bar
• Can be used on outward or inward opening doors
• Includes anchor plate & fixings
• DIN18251-2 Class 3 certified
• Suitable for heavy-duty use in offices, schools, & public buildings
• S.B 1314

Specifications

• Backset: 35mm
• Centres (PZ): 92mm
• Flat faceplate length: 245mm
• Case dimensions: 181 x 50mm
