Roller Sash Window Stops

pa_brand
SKU: -646 Category:
  • Clear

Description

These simple to install roller sash window stops provide security against unauthorised entry, and increases window safety by restricting the opening distance of a sliding sash window. Available in a variety of finishes so that they can be matched with existing window sash parts.

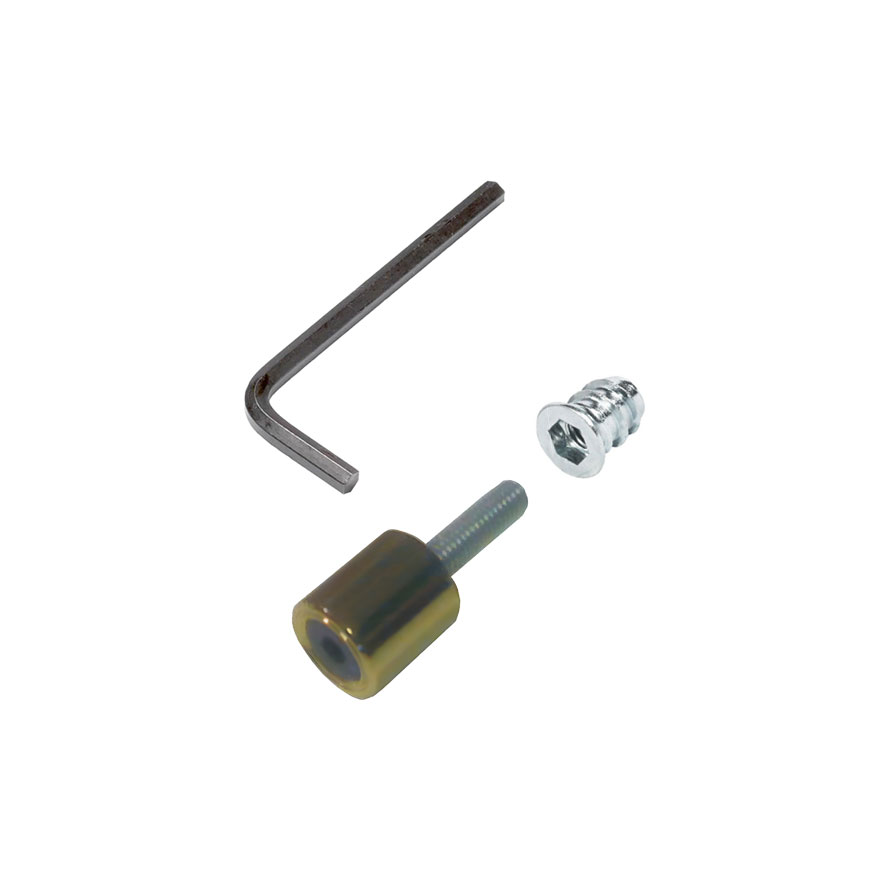

Each set is supplied with 4 stops, which is enough to secure 2 sash windows.

Specifications

  • Restricts the opening distance of vertical sliding sash windows
  • 19mm length to suit standard wooden sashes
  • Additional security if fitted just above the meeting rail

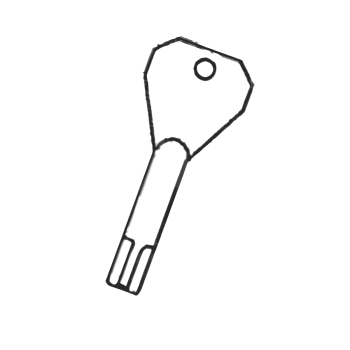

  • Supplied in sets of 4 with a release key
  • Comes in 2 lengths: 19mm or 31mm
  • Available in brass, polished chrome or satin chrome finishes
  • Supplied with fixings and striker plates to protect the sash against the stops

Additional information

Weight 2.000 kg
Brand

Q-Line

Length

19mm, 31mm

Finish

Brass, Polished Chrome, Satin Chrome

Accessory

Restrictors

Instructions

Step One

Drill counter bore into frame according to dimensions shown:

Step two

Screw in the wood insert

Step three

Screw the roller stop into the insert using the Allen key supplied.

The roller stop can then be wound fully into the sash (to allow the sash to be opened fully) or wound out to stop the sash at the desired opening distance.

The roller stops can also be fitted to uPVC or aluminium profiles by using rivet nuts instead of the timber inserts (not supplied).
