Dr.Hahn ‘Turband 4’ Three Piece Flag Hinge
Dr.Hahn 'Turband 4' Three Piece Flag Hinge
Dr.Hahn 'Turband 4' Three Piece Flag Hinge

Dr.Hahn ‘Turband 4’ Three Piece Flag Hinge

pa_brand
SKU: N/A Category:
  • Clear
Free mainland UK delivery

On orders over £100 (charges apply to oversized items) - find out more here

Description

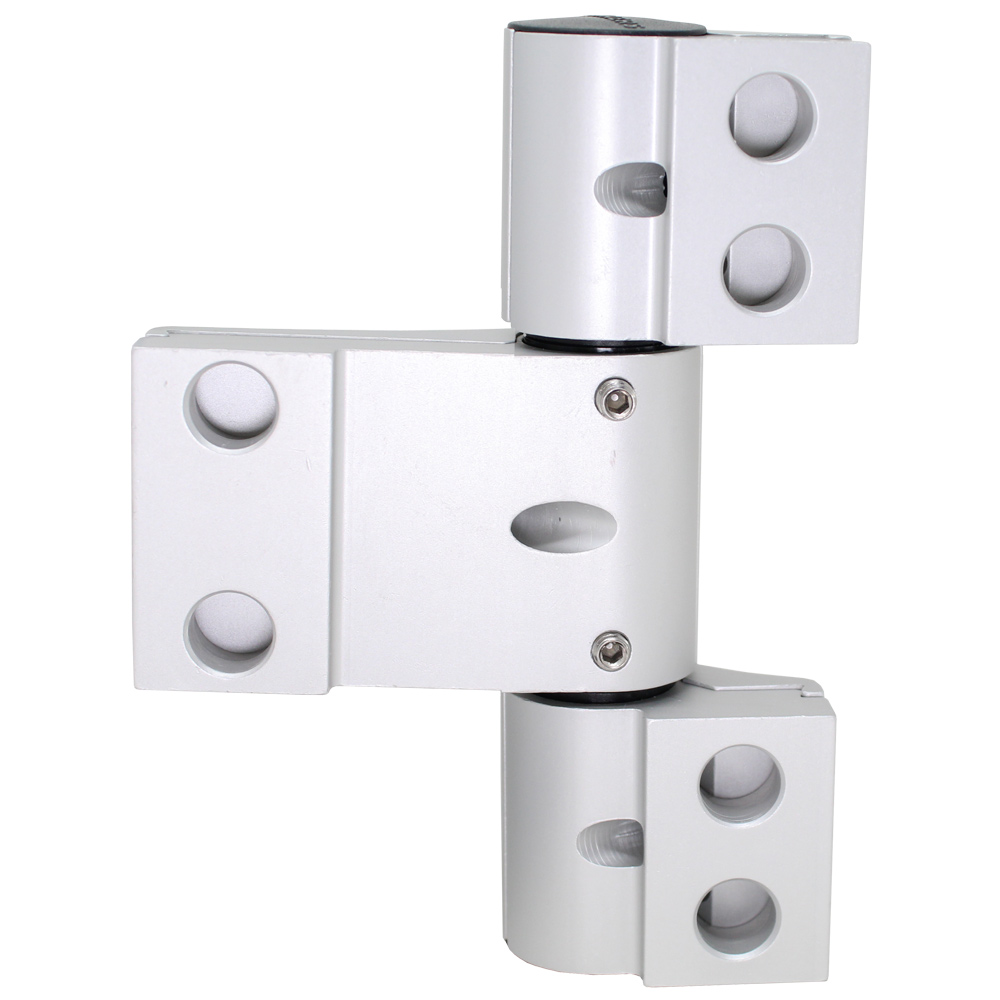

Dr.Hahn ‘Turband 4’ three-wing aluminium flag hinge.

Features

  • 3-wing adjustable door hinge
  • Made of aluminium
  • Flush fitting
  • Aluminium construction
  • Silver finish
  • Supplied individually
  • CE Certified / EN 1935 class 14 tested
  • 160-180kg maximum door weight (2-3 hinges fitted)
  • SKG anti-theft rated
  • Made by Reynaers

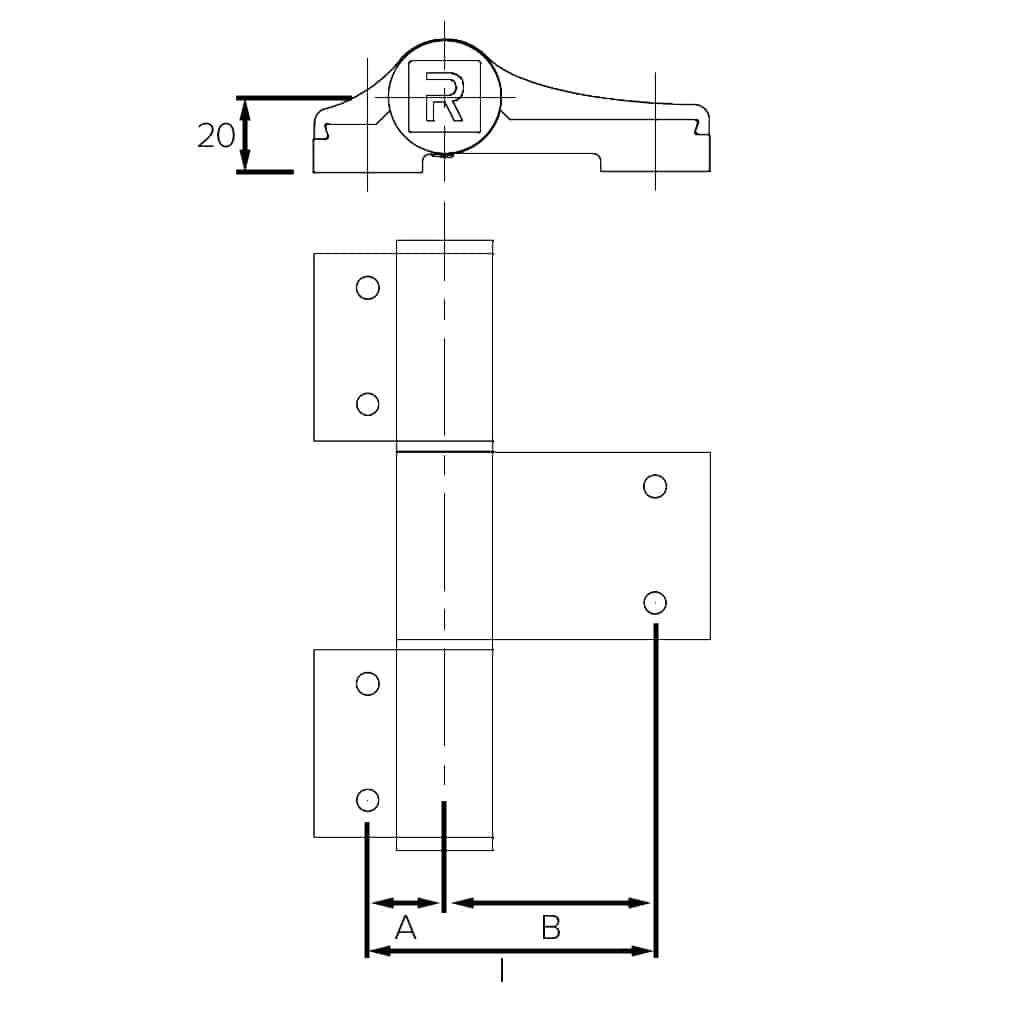

Sizes available:

DRH/T43/A951BW- I=65mm /A=20.5mm / B=44.5mm

REY065.6688/S – I=76.5mm / A=20.5mm/ B=56mm

DRH/T43/97.5- I=97.5mm/ A=41.5mm/ B=56mm

DRH/T43/109.5- I=109.5/ A=47mm/ B=62.5mm

Additional information

Weight 2 kg
Brand

Dr.Hahn
Part number

065.6688.17
Hinge

3-Part, Adjustable, Aluminium, Flag
Option

76.5mm, 65mm, 97.5mm, 109.5mm

Reviews

There are no reviews yet.

Be the first to review “Dr.Hahn ‘Turband 4’ Three Piece Flag Hinge”

Your email address will not be published. Required fields are marked *

FAQs

What is the frame upstand size?

The frame upstand, or profile upstand size is the height of the ‘step’ between the frame edge and the sash edge that a flag hinge needs to clear in order to fit correctly.
As most flag hinges are adjustable they can be adjusted from a minimum to a maximum upstand size, commonly around 15 mm to 23 mm.

Check that the hinge you are purchasing is suitable for the frame upstand of your door.

Frame Upstand (or Profile Upstand) size
