Lift Out Pivot Shoe 16mm-18mm (PE699)

SKU: LO-699 Category:

Description

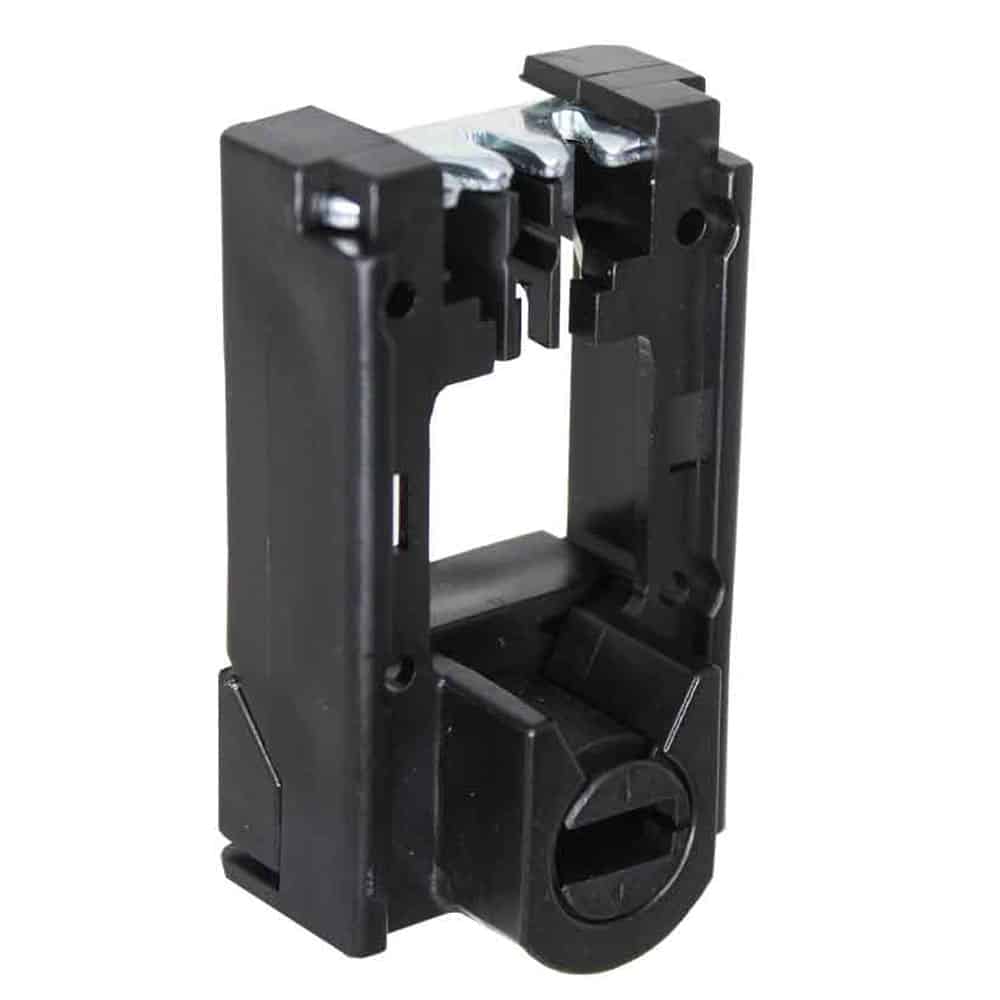

Lift out pivot shoe for vertical sliding sash windows.

A pivot shoe works in tandem with a pivot bar, and it connects the sash to the balances. The protruding part of the pivot bar fits into the slot of the pivot shoe. The balance connects via the slots on the top of the pivot shoe. Once connected, this allows a sash window to slide up and down. It also allows the sash to be tilted into the room for cleaning and maintenance.

Features

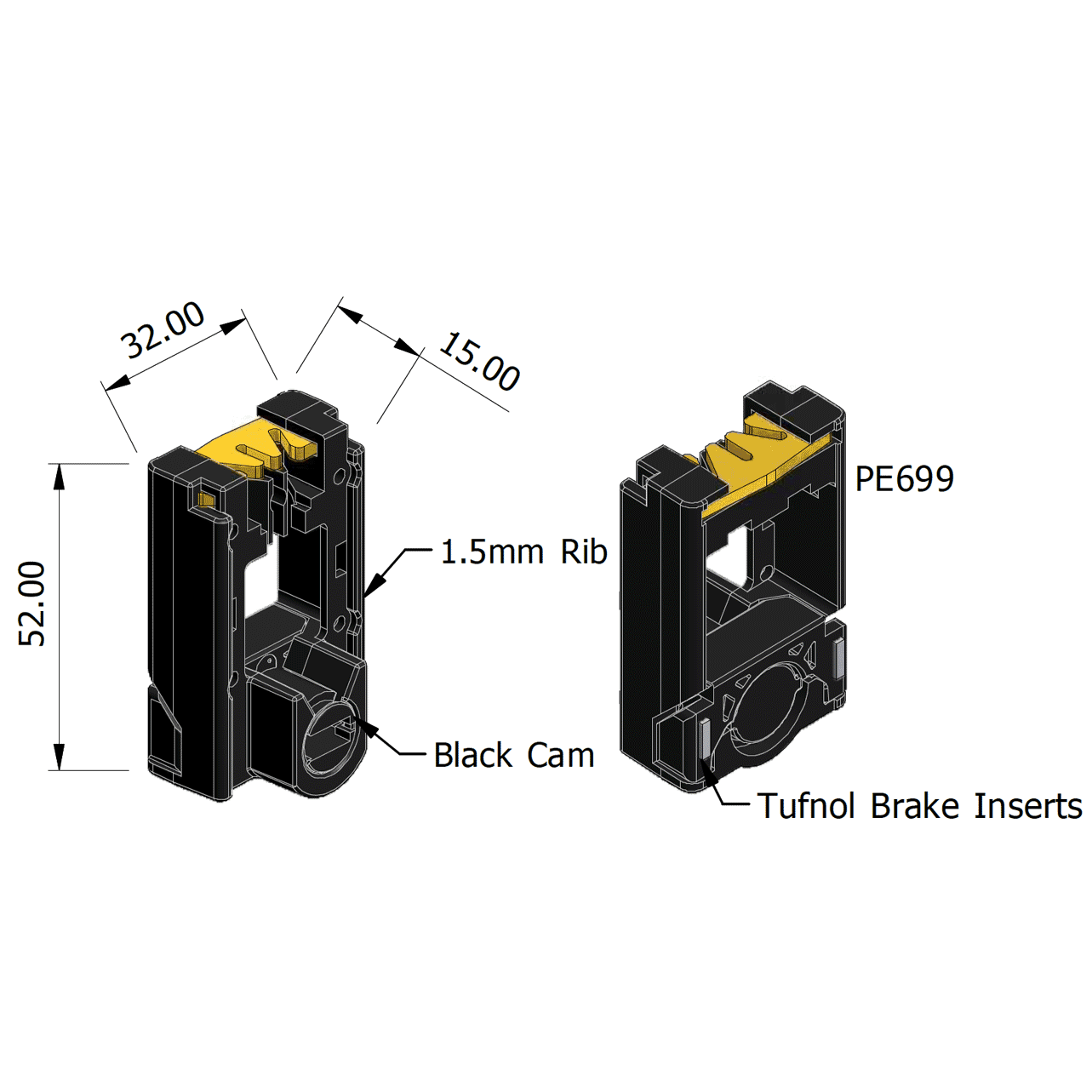

  • 16mm to 18mm depth
  • Supplied individually
  • Black cam colour
  • Applications: Ultralift & Torso balances

Additional information

Weight 2.000 kg
Accessory

Pivot Shoes

Part number

PE699
