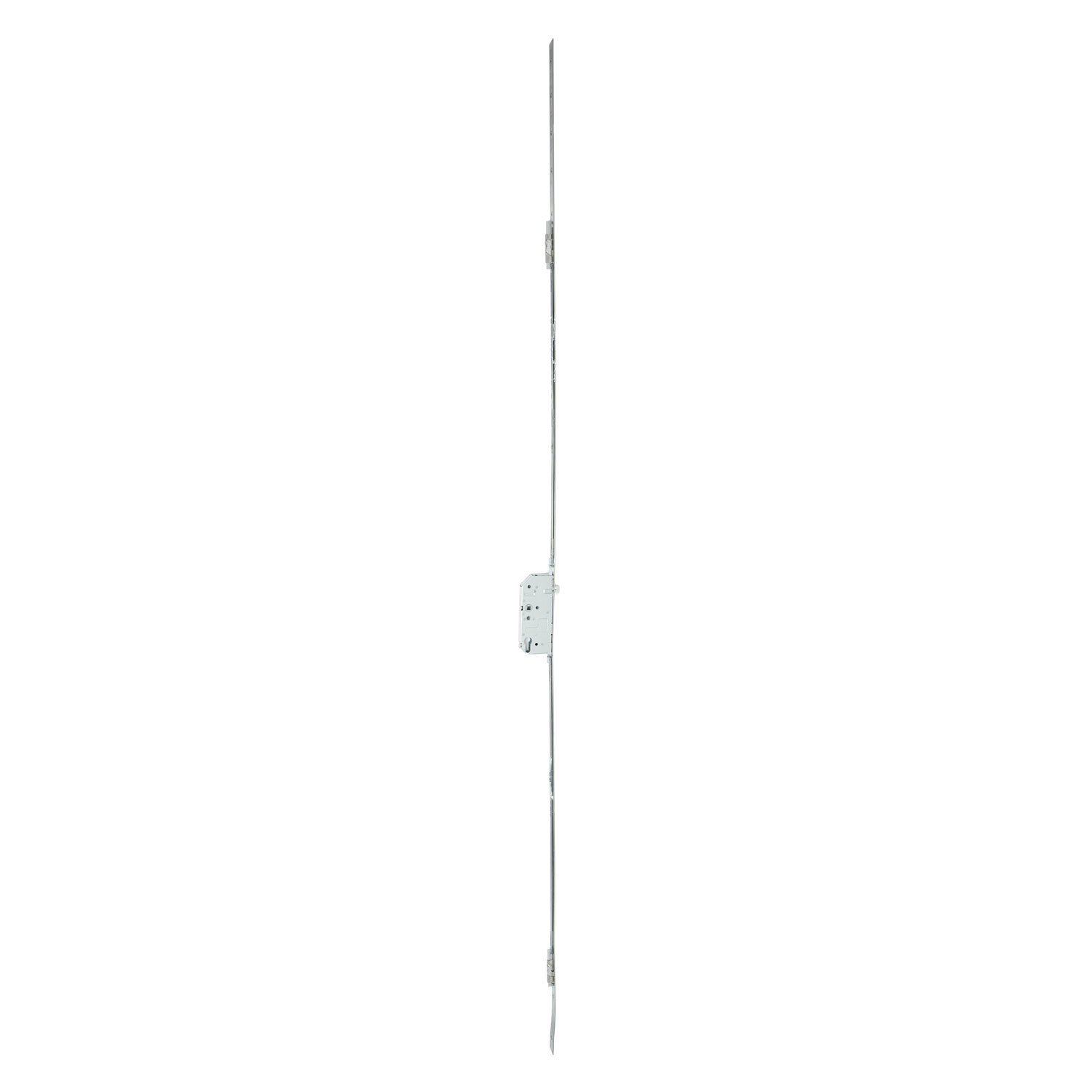

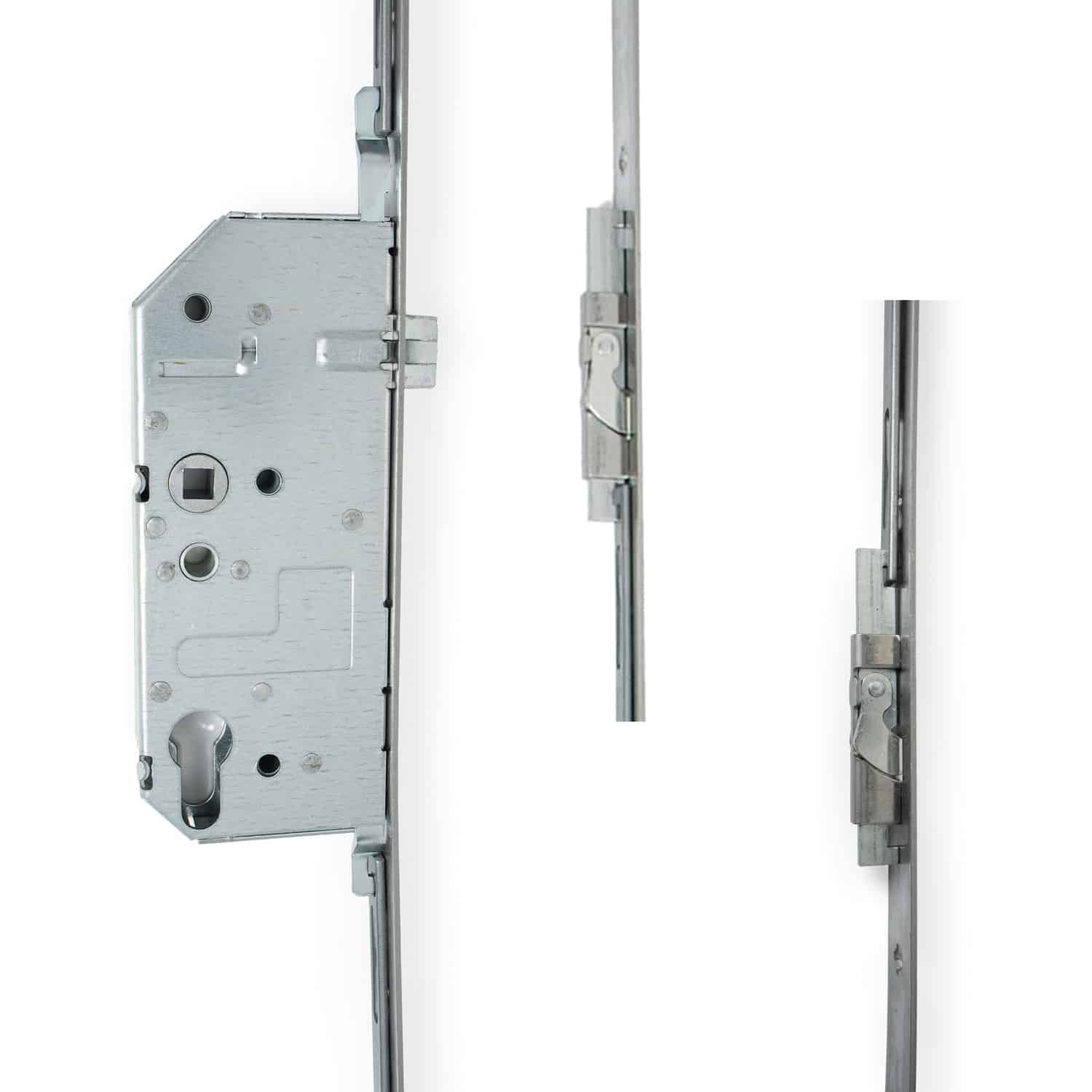

FIX 6151 / 6025 Multipoint Door Lock

Description

The FIX 6151 / 6025 multipoint door lock comes with left and right hand options. It has 2 hook/wedge bolts, latch and deadbolt in the centre. This lock can often be found on Scandinavian timber doors.  The gearbox takes a standard Euro type cylinder lock.

In order to lock the door, turn the handle up to throw the hook/wedge points into position. Return the handle to its horizontal position. The locking is then done with a key or thumb turn. All of the locking points and dead bolt lock together simultaneously.

Features

• FIX SWEDEN Euro cylinder gearbox included (also available separately)
• Left & right-handed options available (non reversible)

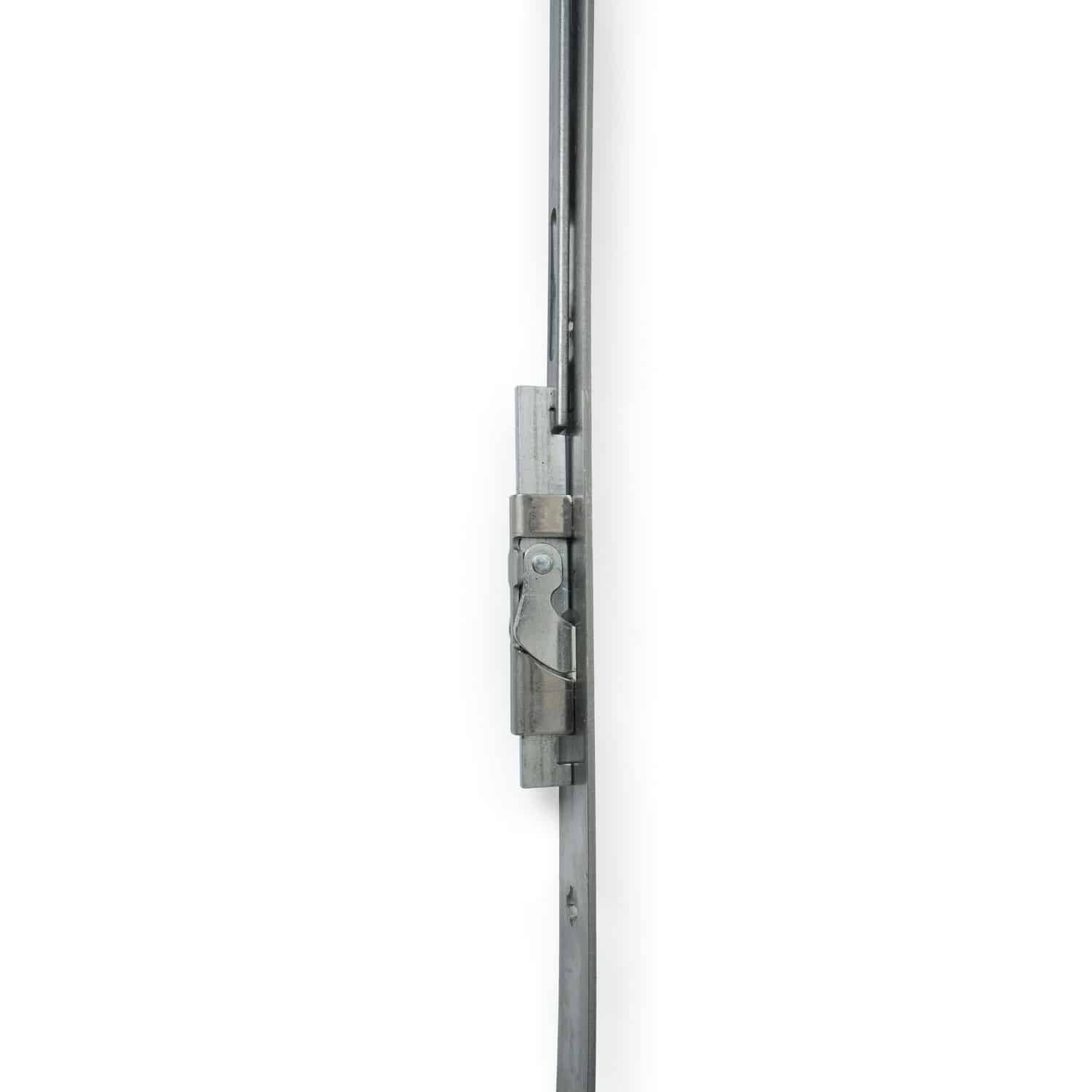

• 2 hook/wedge bolts, latch & deadbolt in the centre

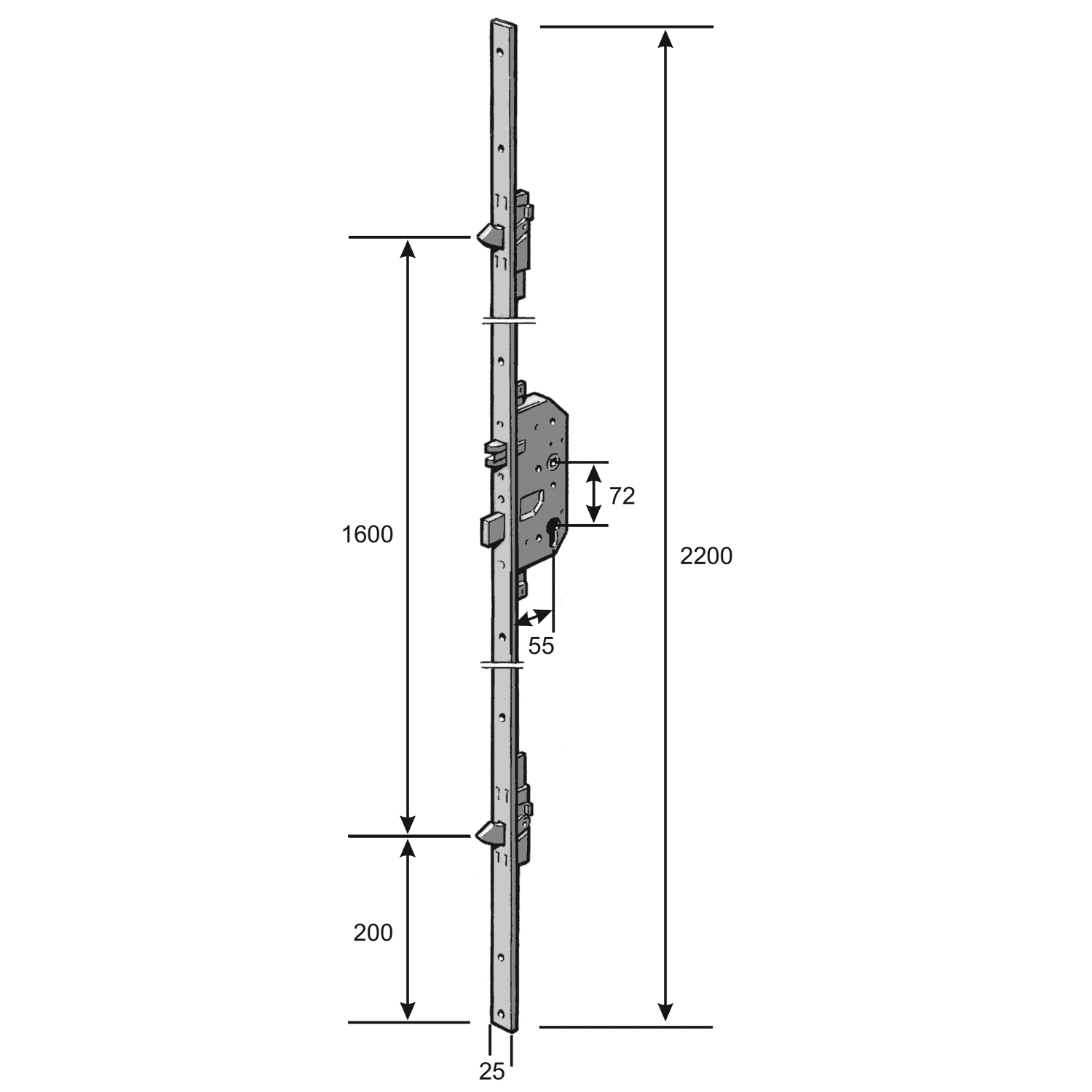

• 1600mm centres (between top & bottom wedge bolts)
• 2200mm overall length
• 25mm wide faceplate
• 72mm PZ size
• 55mm backset size
• Genuine FIX brand made in Sweden
• Free mainland UK delivery is included
