Dr. Hahn Series 60 AT (3-Part Aluminium Door Hinge)

Description

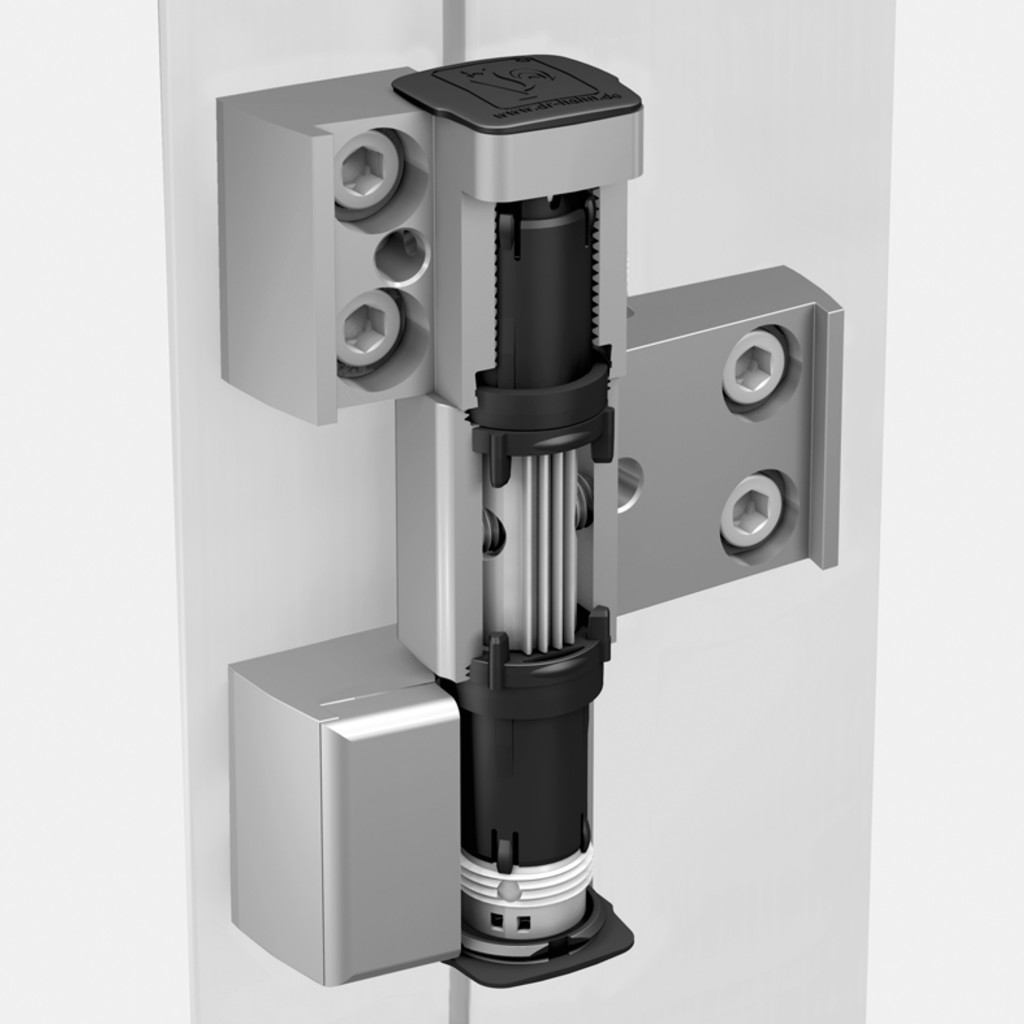

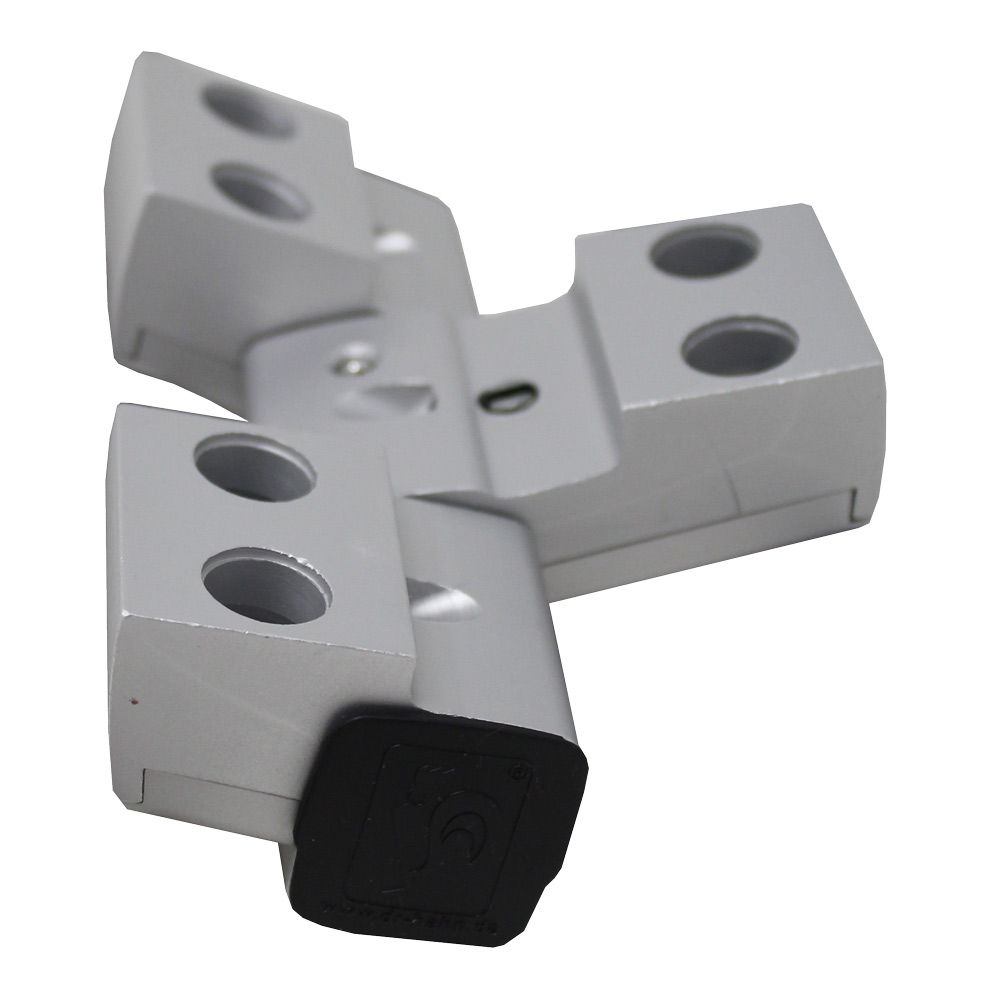

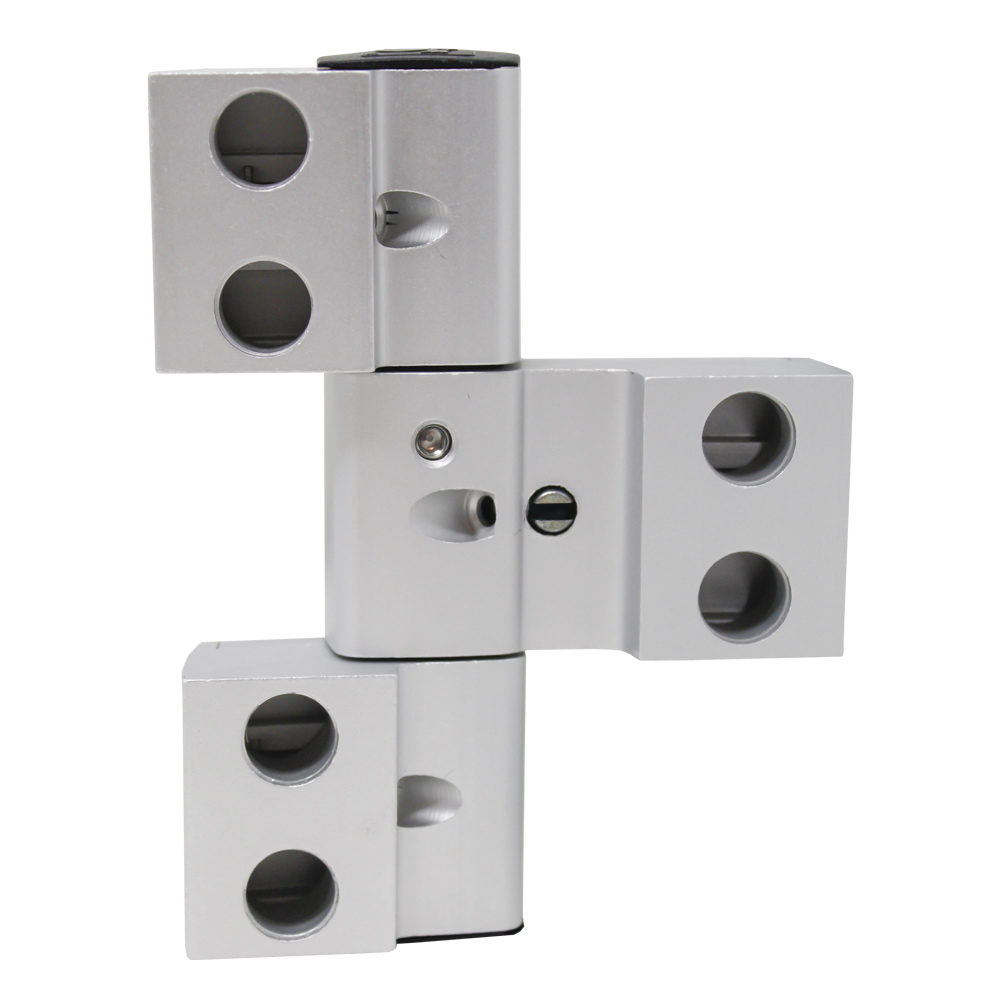

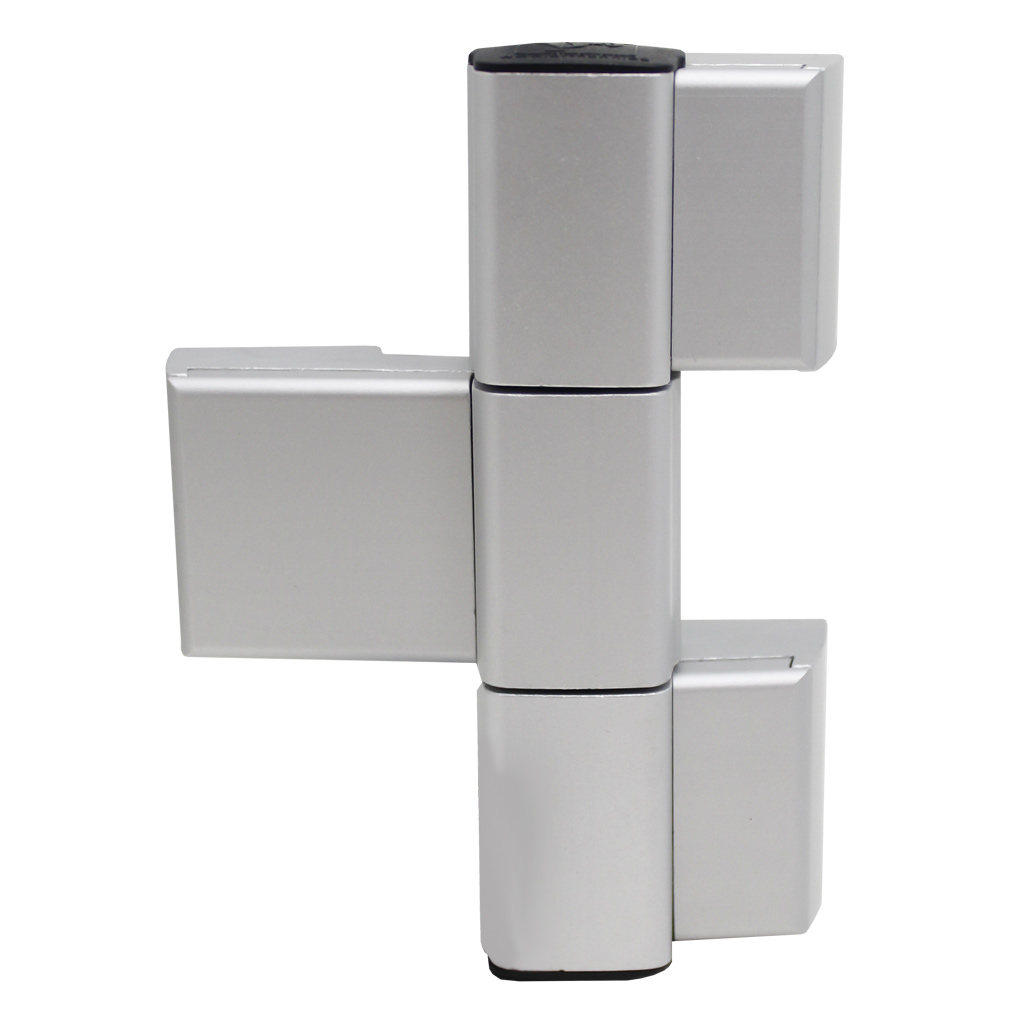

Dr. Hahn Series 60 AT 3-part aluminium door hinge. This is a fully adjustable metal door hinge capable of carrying up to 220kg in weight. The hinge can be adjusted in 6 directions with the door fitted.

This is an award winning hinge manufactured in Germany by Dr. Hahn. They have developed the Series 60 hinge to suit many installation situations. There are various mounting options so that door installers fitting requirements. For example, mounting plates are used for single chamber systems. For multiple chamber systems with a minimum wall thickness of 1.6 mm or more, the Hahn anchor screw is the method of choice.

Features

• Suitable for aluminium doors
• EV1 anodised silver finish
• Supplied individually
• Adjustable in 6 directions
• For metal door weighing up to 220 kg
• Fixings not included (available by request)
• Horizontal adjument: ± 2.5 mm
• Height adjustment: + 3 mm and – 2 mm
• Sealing pressure adjustment: ± 0.5 mm
